Description
Detail overview
General Information :
Manufacturer : Hewlett Packard Enterprise
Manufacturer Part Number : 784655-S01
Manufacturer Website Address : WWW.HPE.COM

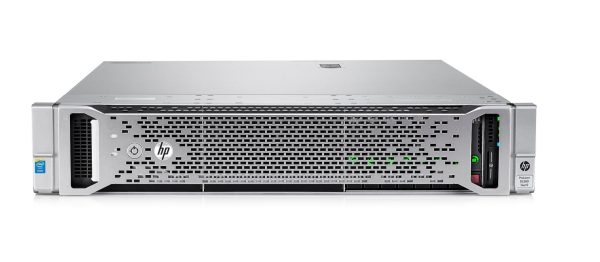

Product Name : Proliant Dl380 Gen9 – 2u Rack-mountable Server ( Base Model)
Processor & Chipset :
Processor Type : Intel Xeon E5-2670v3/ 2.3ghz
Max Turbo Speed : 3.1 Ghz
Quickpath Interconnect : 9.60 Gt/s
Number Of Cores : 12-core
64-bit Computing : Yes
Compatible Processor Socket : Fclga2011-3
Installed Qty : 2
Max Supported Qty : 2
Chipset Type : Intel C610 Series
Cache Memory :
Installed Size : L3 Cache – 60 Mb
Cache Per Processor : 30 Mb
Memory :
Installed Size : 64 Gb / 384 Gb (max)
Technology : Ddr4 Sdram
Effective Memory Speed : 2133 Mhz
Form Factor : Dimm 288-pin
Slots : 24 (total) / 20 (empty)
Features : Registered, Hp Smartmemory
Configuration Features : 4 X 16 Gb
Ram Supported : Pc4-17000 – 384 Gb Registered Pc4-17000 – 768 Gb Load-reduced
Storage :
Hard Drive : None.
Optical Drive Type : None.
Storage Controllers:
Storage Controller Name : Smart Array P440ar
Buffer Size : 2 Gb
Disk Drive : 12gb/s Sas / 6gb/s Sata
Sas Port Link Rate : 12gb/s Per Physical Link Supported
Pcie Link Rate : Pci Express 3.0 X8 (pcie3 X8)
Physical Drives : Up To 26 Drives
Logical Drives Supported : Up To 64 Logical Drives
Raid Support : Raid 0, Raid 1, Raid 5, Raid 6, Raid 10, Raid 50, Raid 60, Raid 1 Adm, Raid 10 Adm
Display & Graphics Controllers :
Graphics Controller Type : Integrated Matrox G200eh2
Network & Communication:
Ethernet Controller : Hp Ethernet 1gb 4-port 331i Adapter
Network Processor : Broadcom Bcm5719 Chipset
Ethernet Ports : 4 X Gigabit Ethernetduplex Theoretical Bandwidth
Data Link Protocol : Ethernet, Fast Ethernet, Gigabit Ethernet
Remote Management Protocol : Integrated Lights-out 4
Remote Management Controller : Rj-45 (two)
Features : Wake On Lan (wol), Pxe Support
Compliant Standards : Ieee 802.3, Ieee 802.3u, Ieee 802.3ab
Expansion/ Connectivity :
Expansion Bays Total (free) :
8 (total) / 8 (free) X Hot-swap 2.5 Sff
Expansion Slots Total (free) :
2 (total) / 0 (free) X Cpu
24 (total) / 20 (free) X Dimm 288-pin
2 (total) / 2 (free) X Pcie 3.0 X16 – Half-length, Full-height (x8 Mode)
1 (total) / 1 (free) X Pcie 3.0 X8 – Half-length, Full-height
1 (total) / 1 (free) X Micro-sd Card (internal)
Interfaces & Ports :
4 X Lan (gigabit Ethernet) – Rj-45
1 X Hp Ilo – Rj-45
1 X Vga
5 X Usb 3.0 ( 1 Front, 2 Rear, 2 Internal )
2 X Lan (10gigabit Ethernet)
Miscellaneous :
Included Accessories :
Hp Easy Install Rail Kit
Features :
Administrator Password
Power-on Password
Keyboard Password
Serial Port I/o Control
Quicklock
Uefi Bios
Compliant Standards :
Acpi 2.0b, Fcc Class A Certified, En 61000-3-2, En55022, Ices-003, En 61000-3-3, En55024, Cispr 22, Fcc Cfr47 Part 15, Iec 60950-1, En 60950-1, Weee, Gb 9254, Ashrae, Cns 13438
Manufacturer Selling Program :
Hp Smart Buy
Power Description :
Device Type : Power Supply – Hot-plug
Power Redundancy : Yes
Power Redundancy Scheme : 1+1
Installed Qty : 2
Max Supported Qty : 2
Nominal Voltage : Ac 120/230 V
Power Provided : 750 Watt
80 Plus Certification : 80 Plus Platinum
Efficiency : 94%
Dimensions & Weight :
Width : 17.5 Inch
Depth : 26.7 Inch
Height : 3.4 Inch
Weight : 32.5 Lbs
